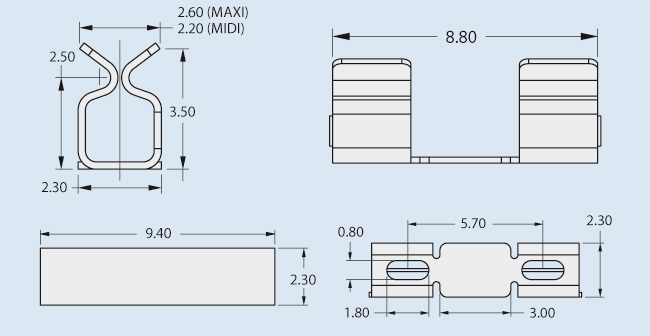

Large clip on (LC)大夾子
The Large clip on is used to mount PCB screening covers from the 1500 serie. This clip is used to mount on to the surface of the PCB (SMT) and offers a fast solution for assembling RFI/EMI shields to PCBs. This clip eliminates the need for through holes and post reflow operations on the PCB.
該大夾子用于裝配1500系列的PCB屏蔽蓋。這個夾子被用于裝配到PCB(SMT)表面，提供了一個快速的裝配RFI/EMI屏蔽到PCB的解決方法。這個夾子消除了在PCB上通孔和回流柱的需要。

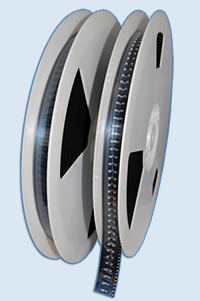

The specificaties are the same as the medium clip, exept that thicker screening covers can be used. Screening covers can be placed in the clip up to 0.3 mm thickness. This clip can be supplied on reels of 1900 pieces.
規格和中等夾子相同，除了使用了更厚的屏蔽蓋。屏蔽蓋能被放置在夾子里可達0.3mm厚度。這個夾子的供貨是以卷的形式，每卷1900只。
Material材料:
Beryllium Copper or鈹銅合金或
Cupro-Nickel銅鎳合金 (Beryllium-free)
Finish涂覆層:
Tin or Tin/Lead 錫或錫/鉛
Packaging Format包裝形式:
Tape & Reel and Pieces 帶&卷和只
Reel Quantity每卷數量:
1,900 on a Ø330mm reel
Contact Resistance接觸電阻:
20 milliohms max
Shield Thickness屏蔽厚度:
up to 0.30mm
Insertion force插入力 (max最大值):
3.0N
Withdrawal force 拔出力(max最大值):
1.0N
Example舉例
When you order 8 Large clips (LC) please specify the partnumber as follow:
當你訂購大夾子（LC）時，請指明零件號，如下：
|
Partnumber零件號 |
Amount |
|
LC |
8 |
|
|
Number of clips desired? The large clip on can also be delivered on reels of 1900 pieces. Then specify 1900 |
