Selection by Model Type :: Monopole Antennas

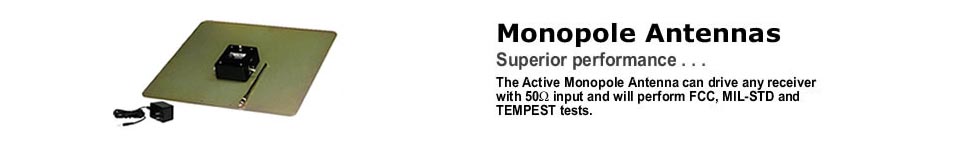

Our Monopole Antennas provide superior performance in electric field measurements. The Active Monopole Antenna can drive any receiver with 50W input impedance and will perform FCC, MIL-STD and TEMPEST tests. The passive rod is used for transmitting, to perform shielding effectiveness and immunity testing. Click on a model below to learn more about it's characteristics.
|
Model |
Frequency Range |
Description |
|
9 KHz - 60 MHz |
Active Monopole, Battery Power | |
|
100 Hz - 60 MHz |
Active Monopole, Battery Power | |
|
9 KHz - 40 MHz |
Monopole, Passive | |
|
1 KHz - 60 MHz |
12" Loop and 41" Active Monopole Antenna |
The ECF-10 is an equivalent capacitance fixture constructed per IEEE 291 and ARP 958. This is an indispensable tool used for gain adjustment and calibration of the Active Monopole Antennas.
|
Model |
Frequency Range |
Description |
|
|
|
|
|
100 Hz - 60 MHz |
Equivalent Capacitance Fixture |
