當前位置:首頁 > 屏蔽解決方法
產品信息
屏蔽解決方法

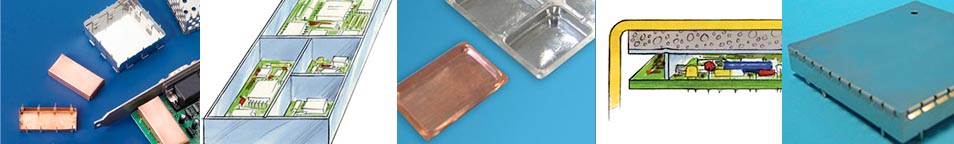

PCB shielding solutions屏蔽解決方法

Clip-on shielding system夾式屏蔽系統
1500 serie系列

Fixed serie固定系列
1600 serie系列

Drawn board level shields拉伸式板級屏蔽
1700 serie系列

1500 serie PCB shield

Metallisation 3838

Silver coating 3850

Properties特性
Less space taken up on the board。在板上占用很少的空間。
Excellent solution for series of 1 - 5,000 pieces。卓越的解決方法用于1-5000只的系列。
For heavy duty applications the lid can also be fixed by extra soldering between the lid and some of the pins。
對于重載應用,通過在蓋子和一些插腳之間進行外加的焊接蓋子也能被固定。

Properties特性
Can be manufactured by our CNC production system。通過我們的CNC生產系統能夠進行制作。
Suitable for series of 100 -100,000 pieces
適合用于100-100,,00只的系列
Made according to your drawing
根據你的圖紙制作。

Properties特性
Designed for seamless corners。設計用于無縫角。
Ultra-high frequency shielding超高頻率屏蔽
Available in heights of 0.5 to 8 mm and sizes of 6 to 80 mm
可獲得的高度為:0.5到8 mm。
尺寸:6到80 mm
Can be combined with ventilation
能與通風設備結合

Compartment shield分隔屏蔽
1800 serie

High volume production高容量生產



PCB compartment shield 1800 serie

PCB compartment shield 1800 serie



Properties特性
From 1.000-250.000+ items
Excellent EMI shielding

Properties特性
From 1,000 to 250,000+ items
Excellent EMI shielding



Mounting clips and pins for the PCB shields 用于PCB屏蔽的安裝夾子和插腳


Small pin小引腳
Type P

Medium clips中等夾子
Type MC

Large clips大的夾子
Type LC

Small clip for attaching PCB shield

Shieldokit 3980

Large clip for attaching PCB shield

Properties特性
With a tinned pin帶有一個鍍錫的引腳
Can be soldered into the PCB at any available place around the screening cover能在任何可能的地方將屏蔽蓋四周焊接進PCB
Big clamping range大的夾鉗范圍
Less accurate positioning is needed很少精確位置要求

Properties特性
The medium clip takes up 40% less space than the large clip
中等夾子比大的夾子占用40%少的空間。
Thickness of the screening cover can be 0.12 to 0.23 mm。屏蔽蓋子的厚度:0.12 到 0.23 mm。
To mount on to the surface of the PCB (SMT)。裝配在PCB(SMT)地表面上,
fast solution for assembling RFI/EMI shields to PCBs?焖侔惭bRFI/EMI屏蔽到PCB板上。
Need for through holes and post reflow operations on the PCB
This clip can be supplied on reels of 5000 pieces
這個夾子的供應是以卷的形式,5000只。

Properties特性
Same as the medium clip, exept that thicker screening covers can be used。與中等夾子相同,除了使用了更厚的屏蔽蓋子。
Screening covers can be placed in the clip up to 0.3 mm thickness。
屏蔽蓋子能被放置在夾子里,可達0.3mm厚。
This clip can be supplied on reels of 1900 pieces
這個夾子的供應是以卷的形式,1900只。
