Cost effective instant Faraday tent物有所值的即用型法拉第帳篷
The RF shielded Faraday tents are manufactured from strong and highly conductive textile. The tents are standard delivered with multiple ropes for easy mounting to the ceiling or with a self-standing frame. Applications are typically EMC experiments, RF measurements, mobile military / forensic activities and personal protection in the field. Faraday tents offer mobile solutions for only a fraction of the price compared to a conventional Faraday cage.
RF屏蔽法拉第帳篷由牢固的和高導電性的織物制造。該帳篷交貨的標準配置帶有多種繩索為了容易安裝到頂棚或帶有一個自立支架。典型的應用是EMC實驗，RF測量，移動軍事/法醫活動和在測試現場的個人防護。法拉第帳篷提供了輕便的解決，與常規的法拉第箱體相比僅僅是一小部分的花費。
Visual contact視覺觀察

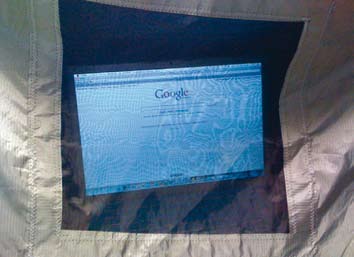

NEW: Maintain visual contact with your experiment
新的：對你的實驗保持視覺觀察
A double layer of fine conductive mesh can be installed allowing you to maintain visual contact between the inside or outside of the tent.
一個雙層的細導電網孔能進行安裝以允許你在帳篷的內側或外側保持視覺觀察。
Access the shielded Faraday tent屏蔽法拉第帳篷入口
Typicaly the access point is made out of magnetic strips covered with electrically conductive layers of textile. The magnetic closure ensures superb electrical contact after the tent is closed. When necessary, the entrance can also be equipped with conductive Velcro strips.
典型的入口點是由帶有電導電層的織物覆蓋的磁條制作的。該磁閉合確保在帳篷閉合之后有卓越的電接觸。當需要時，入口也能裝備導電的維可牢尼龍搭扣條。
Material材料
Our RFI/EMI shielding tents are made of highly conductive, lightweight and ultra strong textile.
我們的RFI/EMI屏蔽帳篷由高導電性、輕重量和超級牢固的織物制造。

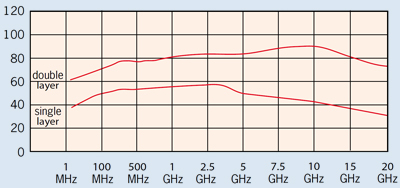

Shielding performance of tents 帳篷的屏蔽性能(dB)
Applications應用
- Computer and Cell Phone Forensics
- Field Military / Embassy use
- Secure / TEMPEST communication
- Radar jammer protection
- Electromagnetic Allergy / Electro smog
- Pre-compliance Testing
- Temporary EMI Shielding
- Reverberation chamber (RVC)
- Mode-stirred chamber (MSC)
Advantages優點
- Easy to mount and move, mobile laboratory 容易裝配和移動，活動實驗室
- Any size possible 可能的任何尺寸
- Optionally supplied with a rigid reinforced floor 可選供應帶有一個堅硬加固地板
- Single layer tent單層帳篷 40-60 dB up to 22.5 GHz
- Double layer tent雙層帳篷 70-90 dB up to 22.5 GHz
Options選件
- Rigid floor for heavy load 堅硬地板用于重負載
- Easy mounting frame 容易裝配的支架
- Shielded power filters 屏蔽的電源濾波器
- Shielded ventilation/ AC 屏蔽通風/AC
- Cable sleeve for entry of filtered cables 電纜套管用于濾波電纜的進入
- Many other options on request許多其它的選件根據需要
Standard available sizes可獲得的標準尺寸:
All measurements given in the table are outsude dimensions表里給出的是外部尺寸
Pyramid錐形
Small小 |
1 x 1 x 2.3 meters |
(code: P-100x100x230) |
|
Medium中 |
2.5 x 2.5 x 2.3 meters |
(code: P-250x220x230) |
|
Large大 |
3 x 3 x 2.3 meters |
(code: P-300x300x230) |
Square正方形
Small小 |
2 x 2 x 2.3 meters |
(code: S-200x200x230) |
|
Medium中 |
2.5 x 2.5 x 2.3 meters |
(code: S-250x250x230) |
|
Large大 |
3 x 3 x 2.3 meters |
(code: S-300x300x230) |
Rectangular矩形
Small小 |
2 x 2.5 x 2.3 meters |
(code: R-200x250x230) |
|
Medium中 |
2 x 3 x 2.3 meters |
(code: R-200x300x230) |
|
Large大 |
2.5 x 3 x 2.3 meters |
(code: R-250x300x230) |
|
Extra large特大號 |
3 x 2 x 2.3 meters |
(code: R-300x200x230) |
Round圓形
Small小 |
Ø2 x 2.3 meters |
(code: O-200x230) |
|
Medium中 |
Ø4 x 2.3 meters |
(code: O-300x230) |
|
Large大 |
Ø4 x 2.3 meters |
(code: O-400x230) |
Jumbo巨大形
Size尺寸 |
5 x 3 x 4 meters |
(code: J-500x300x400-01) |
Any other size on request任何其它的尺寸根據需要
Most sizes are in stock: please contact us for delivery time.大多數尺寸有庫存。
Example例子
Rectangular tent矩形帳篷, 2 x 3 x 2.3 meters and single layers version單層版.
|
Part number零件號 |
Shape形狀 |
Length長度 (cm) |
Width寬度 (cm) |
Height高度 (cm) |
Layers層數 |
|
Shielded tent屏蔽帳篷 |
R |
200 |
300 |
230 |
1 |
|
|
P : Pyramid錐形 |
The length of the tent in centimeters帳篷的長度單位是厘米 |
The width of the tent in centimeters帳篷的寬度是厘米 |
The height of the tent in centimeters帳篷的高度是厘米 |
Specify a single layer指定單層 (1) or a double layer (2) tent或雙層帳篷 |
