For doors: gaskets with low closure force to prevent bending of doors, lids and panels
用于門：墊圈帶有低的閉合力以防止門、蓋子和面板的彎曲。

Ultra Soft Shield Twin 7800 is a combined HF gasket / water seal with very low closure force. All gaskets are provided with a self-adhesive strip on the water seal side.
超軟屏蔽雙7800是一個組合的HF墊圈/水封，帶有低的閉合力。供應的所有墊圈帶有一個自粘條在水封側上。
Ultra Soft Twin Shield 7800 consists of an HF gasket (compare Ultra Soft Shield 7400) combined with an environmental seal of closed-cell foam rubber.
超軟雙屏蔽7800由一個HF墊圈（比照超軟屏蔽7400）與一個環境密封的閉孔發泡橡膠結合組成。

The standard material for the water seal is neoprene foam. As an alternative a slowly recovering PVC foam, which is fully watertight at 30% compression is available.
標準材料用于水封是氯丁橡膠泡沫。作為一個備選方案一個穩定的再生PVC泡沫，可得到在30%壓縮狀態是完全水密的。

Shielding performance屏蔽性能
Shielding effectiveness depends on surface, shape of gasket and material used.
屏蔽效率依據墊圈的表面、形狀和所使用的材料。

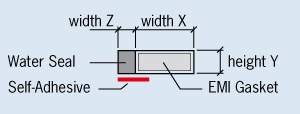

Standard dimensions標準尺寸

Tape specification粘合條規格

1. 01 : standard self-adhesive, asymmetrical 標準自粘，非對稱的
2. 02 : without self-adhesive不帶自粘

Foam specification泡沫規格說明

1. P : low closure force PVC foam 低閉合力PVC泡沫
2. N : Standard Neoprene Foam 標準氯丁橡膠泡沫
3. E : EPDM foam 三元乙丙橡膠泡沫
4. F : flame retardant UL94V-0 foam 阻燃劑UL94V-0泡沫

Example舉例
Please specify the dimension code from the table above, followed by the code for the tape and the code for the material of the water seal.
請從表格上方指定尺寸編碼，接著通過編碼用于條和編碼用于水封的材料。

For example例如:
Ultra soft twin shield 7800, 2+4 x 4 mm, standard self-adhesive, with Neoprene foam water seal: 7864-01-N
超軟雙屏蔽7800，2+4 x 4 mm，標準自粘，用氯丁橡膠泡沫水封：7864-01-N。
