產品信息
導電吸收材料3500&鐵氧體瓦片
商品名稱：Absorber foam吸收泡沫
商品編號：
市場價格：￥
本站價格：￥
詳細信息

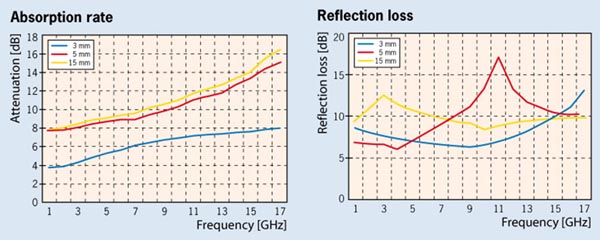

This RoHS compliant coated open cell foam is used as an absorbing material, especially for application with frequencies 1 - 17 GHz.
這個符合RoHS危害物質限用指令的覆著涂層的開室泡沫被用于吸收材料，特別應用于頻率1-17GHz。
Typical applications are antenna hats, test boxes and PCB housings.
典型的應用是天線帽，試驗盒和PCB外殼。
It can be supplied as a die cut or as sheets. Absorber sheets are available in 3, 5 and 15 mm thickness and with or without PSA.
它的供應能以模切或薄片的形式。可獲得吸收體薄片厚度為3,5和15mm及有或沒有PSA。
Standard sheet標準薄片
Size尺寸: 200x300 mm.
Temperature spec溫度: - 40 to +100 degrees Celsius攝氏度,
Hardness shore硬度支撐: 40 +/- 20.
