當前位置:首頁 > 產品信息 > Fingerstrip 指形簧片系列 > 詳細信息
產品信息
Fingerstrip 指形簧片系列
商品名稱:2400 Twisted Fingers Series
商品編號:
市場價格:
本站價格:
詳細信息

2400 - Twisted series 0.2 - 1.8 mm彎曲指形系列
For small gaps and screwed applications用于小的間隙和螺絲擰緊的應用。

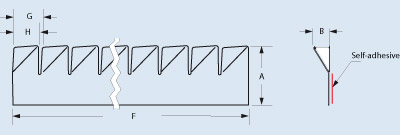

彎曲指形系列Twisted 2401
A double row of contacts in one narrow shield strip. Mounts securely with standard Instant Tac adhesive. Optional poron rubber Enviroseal protects against moisture, dust and other contaminants.
一個雙觸排在一個窄的屏蔽帶里。安裝是牢固的用標準的即干性Tac黏合劑可選擇poron橡膠有毒的保護以防潮濕,灰塵和其它的污染物。

Also available in continuous length rolls也可獲得連續長度的卷.


Part number

A

B

C

F

G

H

2401-01

12,5

1,6

4,8

610

4,2

3,7

2401-02

12,7

1,8

4,8

610

4,2

3,8

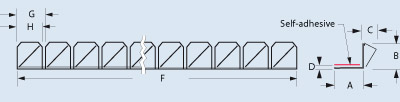

彎曲指形系列Twisted 2402
For areas where a small dynamic range is required, and where the shield in its "compressed state" will not extend beyond its uncompressed dimension "A." Mounting is simple with standard Instant Tac adhesive. Optional poron rubber Enviroseal protects against moisture, dust and other contaminants. Also available in continuous length rolls.
用于要求一個小的動態范圍的領域,這里屏蔽在它的“被壓縮狀態”里不被擴展到它的沒有壓縮的范圍“A”。安裝是牢固的用標準的即干性Tac黏合劑可選擇poron橡膠有毒的保護以防潮濕,灰塵和其它的污染物。也可獲得連續長度的卷。


Part number零件號

A

B

F

G

H

2402-01

5,8

0,8

610

2,4

2,0

2402-02

8,6

1,6

610

4,2

3,7

2402-03

12,7

3,1

610

6,0

5,4

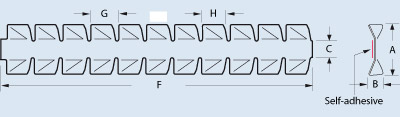

彎曲指形系列Twisted 2403
For applications where side mounting is required. See "G" dimension. Mounts securely with Instant Tac adhesive which adheres to the surface perpendicular to the area where compression contact occurs.
應用于要求側面裝配的情況。看“G”尺寸。安裝是牢固的用即干性Tac黏合劑遵循表面垂直于壓縮接觸發生的區域。

Part number零件號

A

B

C

D

F

G

H

2403-01

3,6

2,0

0,8

0,08

610

2,4

2,0

2403-02

3,6

2,2

0,7

0,08

610

2,4

2,0

2403-03

4,6

4,0

1,8

0,08

610

4,2

3,8

2403-04

4,8

3,8

1,8

0,08

500

4,2

3,8

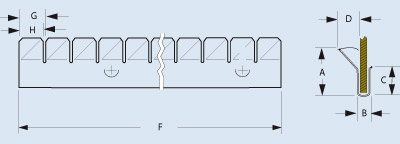

彎曲指形系列Twisted 2404
For applications where a small dynamic range is required and a clip-on mounting is preferred. Mounts simply by pressing into position.
對于應用在要求一個小的動態范圍和一個夾式安裝是首選。安裝簡單,通過將其壓進位置里。


Part number零件號

A

B

C

D

F

G

H

2404-01

3,8

1,0

3,0

0,8

406

2,4

2,0

2404-02

3,8

1,5

2,5

0,8

406

2,4

2,0

2404-03

4,1

1,0

4,0

0,8

406

2,4

2,0

2404-04

4,1

1,5

3,5

0,8

406

2,4

2,0

2404-05

4,8

1,0

3,3

1,8

406

4,5

3,8

2404-06

4,8

1,5

3,0

1,8

406

4,5

3,8

2404-07

4,8

2,0

2,8

1,8

406

4,5

3,8

2404-08

5,8

1,0

4,0

0,8

406

4,2

3,8

2404-09

5,8

1,5

3,5

1,8

406

4,2

3,8

2404-10

6,4

1,0

5,1

1,8

406

4,2

3,8

2404-11

6,4

1,5

4,6

1,8

406

4,2

3,8

2404-12

6,4

2,0

4,1

1,8

406

4,2

3,8
