For doors and panels, very low closure force to prevent bending of doors, lids and panelsVery soft gasket!
用于門和面板，非常低的閉合力以防止門、蓋子和面板的彎曲。非常軟的墊圈！

Ultra Soft Shield 7400 is an HF shielding gasket with high shielding performance and extremely low closure force. This prevents deflection of doors/parts, which improves shielding effectiveness. It is very effective in combination with stainless steel and metals.
超軟屏蔽7400是一個HF屏蔽墊圈帶有高的屏蔽性能和卓越的低的閉合力。這個防止門/部件的偏斜，以提高屏蔽效能。它是非常有效的與不銹鋼和金屬結合。
The core consists of a high-grade polyurethane foam core with a maximum compression of 80%, which distinguishes Ultra Soft Shield 7400 from other commonly used shielding materials.
該核由一個高級的聚氨酯泡沫核組成帶有一個最大值80%的壓縮，辨別超軟屏蔽7400不同于其它的通常使用的屏蔽材料。
Ultra Soft Shield 7400 is covered with a highly conductive and wear & tear resistant metallized fabric.
超軟屏蔽7400被覆著一個高導電和耐磨損金屬織物。
Different foam cores and conductive foils and fabrics are available for special application.
不同的泡沫核和導電箔和織物可獲得用于特殊的應用。
For this gasket with waterseal, see 7800 Ultra soft twin shield.
對于這個墊圈帶有水封的，看7800超軟雙屏蔽。

Benefits好處

1. Deflection up to彎曲可達 80%
2. Very low closure force 非常低的閉合力
3. Very high electrical conductivity 非常高的電傳導性
4. High shielding performance 高的屏蔽性能
5. Roll length一卷的長度: 50, 100, 250 or 1000 m
6. Easy to fit, self-adhesive 容易裝配，自粘
7. High abrasion resistance 高的耐磨性
8. Tools required: apair of scissors 要求的工具：一付剪刀

Options選件

1. Cut into accurate lengths 剪切成精確地長度
2. Combination with water seal 兼具水封
3. UL94V-0 flame retardant foam core 阻燃劑泡沫核
4. Chemical resistant rubbers like EPDM 耐化學橡膠，如三元乙丙橡膠
5. Silicone sponge for high temperatures up to 220°C 硅樹脂海綿用于高溫，可達220°C
6. Different conductive foils and fabrics不同的導電箔和織物

Standard dimensions標準尺寸

Dimensions

* Bold item numbers are 98% stock items. Other dimensions on request.

Special shapes特殊形狀

Shielding Performance屏蔽性能
Shielding effectiveness depends on surface, shape of gaskets and materials used.屏蔽效能依據墊圈的表面、形狀和使用的材料。

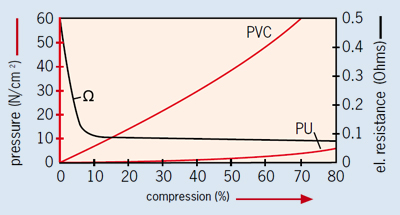

Mechanical properties機械特性

Tape Specification條的規格

1. 01 : standard self-adhesive placed in the middle 標準自粘布置在中部
2. 02 : without self-adhesive 不帶有自粘
3. 03 : with conductive self-adhesive 帶有導電自粘
4. 06 : standard self-adhesive, asymmetrical 標準自粘，非對稱的

Foam Specification泡沫規格

1. P : standard polyurethane foam 標準聚氨酯泡沫
2. F : flame retardent UL94V-0 foam阻燃劑泡沫

Example舉例
Ultra soft shield 7400, 9 x 6 mm, standard self-adhesive, placed in the middle, standard polyurethane foam core: 7496-01-P
超軟屏蔽7400，9 x 6 mm，標準自粘，布置在中部，標準聚氨酯泡沫核：7496-01-P
